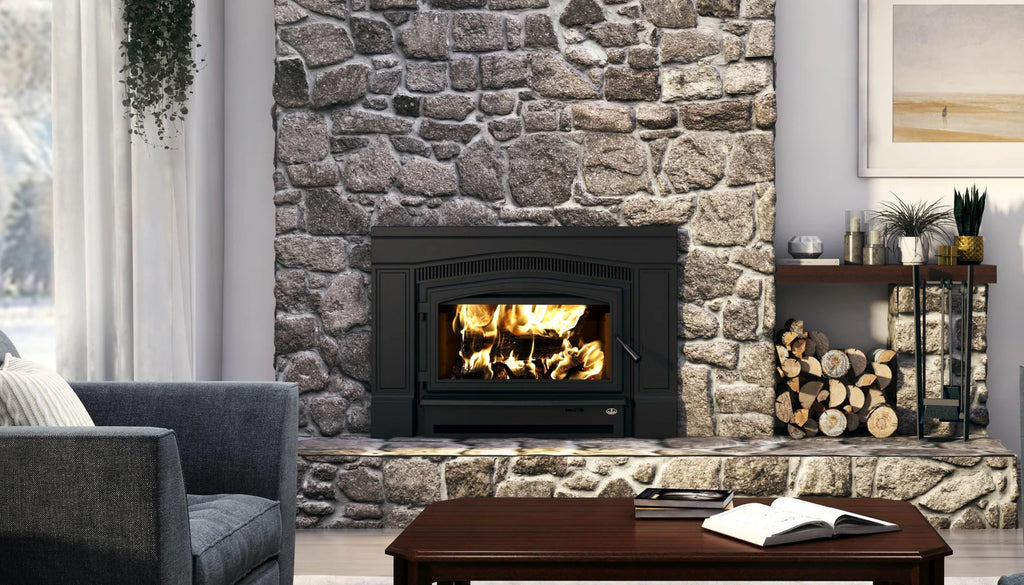

The Osburn Matrix 2700 must be installed in a masonry fireplace.This updated version of the Matrix wood insert will seduce you with an average particle emission rate as low as 1.54 g/h. The latest modifications made to this box are well in tune with the industry standards required for 2020. Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.

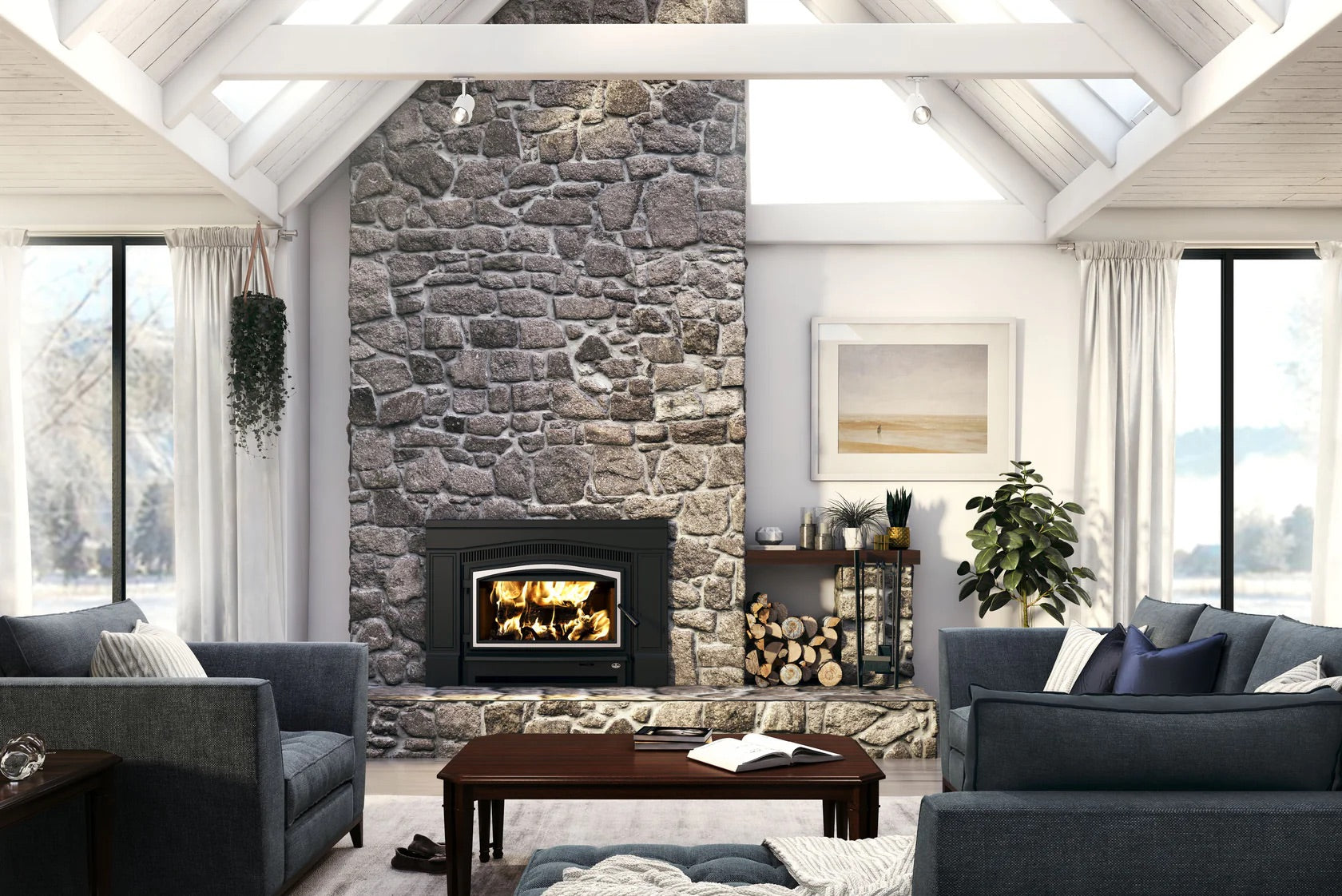

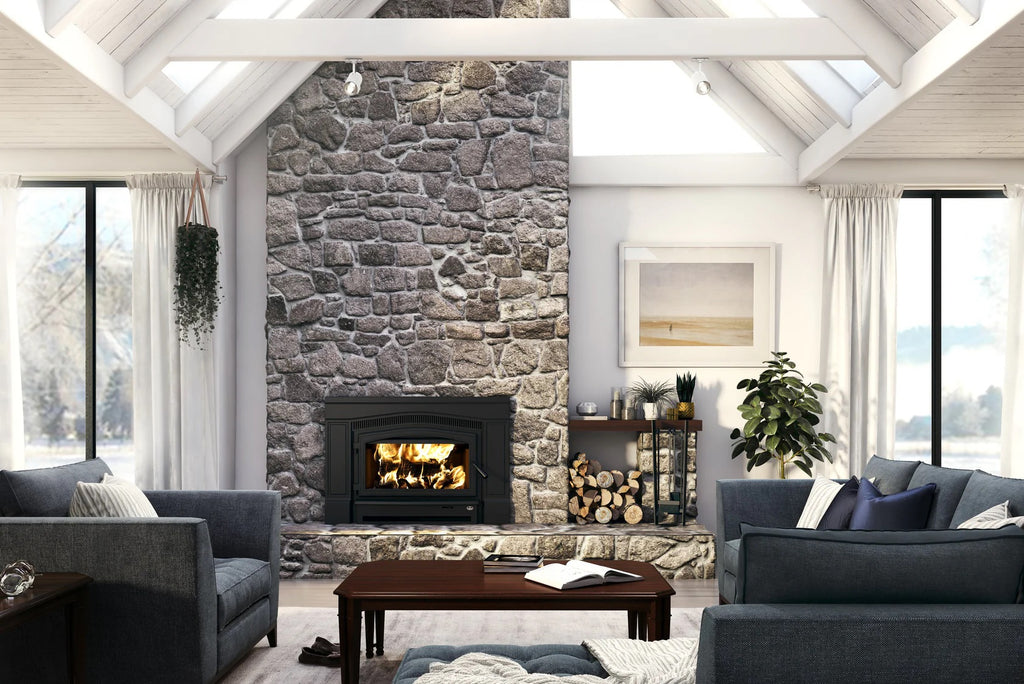

Inspired by nature, the Matrix 2700 insert is a fusion of traditional style and technological innovation. Located in the heart of your living space, the generous viewing area of the Matrix 2700 will invite you to sit back, relax and take in the calm and warmth of its flames. Eco-savvy consumers will appreciate its efficient combustion, quality performance and classic beauty.
Customize the look of this non-catalytic appliance by choosing from a black or brushed silver-plated door overlay and fire screen.
APPLIANCE PERFORMANCE
| Fuel type : |
Dry cordwood (16" recommended) |
| Recommended heating area-ft² : ()
|
750 - 2,200 |
| Overall firebox volume-ft³ : |
2.5 |
| EPA loading volume-ft³ : |
1.94 |
| Maximum burn time : ()
|
8 h |
| Maximum heat output-dry cordwood : (2)
|
80,000 BTU/h (23.4 kW) |
| Overall heat output rate < : (2) (3)
|
12,700 BTU/h (3.72 kW) to 60,700 BTU/h (17.79 kW) |
| Average overall efficiency (dry cordwood) : (3)
|
64 % (HHV) (4)
|
68 % (LHV) (5)
|
| Optimum overall efficiency : (6) (7)
|
70 % |
| Optimum heat transfer efficiency : (8)
|
68 % |
| Average particulate emissions rate : (9)
|
1.2 g/h |
| Average CO : (10)
|
98 g/h |
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Maximum log length |
20" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) |
15' |
| Baffle type |
C-Cast or equivalent |
| Approved for a mobile home installation |
No |
| Shipping Weight |
535 lb (243kg) |
| Door type |
Single, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
24 3/8" X 12 5/8" |
| Glass air-wash system |
Yes |
| Premium quality blower included (CFM) |
176 |
| Overall dimension (Height) |
30 1/8" |
| Overall dimension (Width) |
43 5/8" |
| Overall dimension (Depth) |
27 1/4" |
| Door opening – dimension (Height) |
10 1/2" |
| Door opening - dimension (Width) |
25 3/8" |
| Firebox – dimension (Height) |
12 3/8" |
| Firebox – dimension (Width) |
22 5/8" |
| Firebox – dimension (Depth) |
12 7/8" |
| Moulded refractory bricks |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| Adjustable threaded legs |
Yes |
| Steel thickness – body |
3/16'' |
| Steel thickness – top |
3/16'' |
| Fireplace opening – minimum (Height) |
27 1/8" |
| Fireplace opening – minimum (Width) |
31 3/4" |
| Fireplace opening – minimum (Depth) |
22 1/8" |
| USA standard (emissions) |
EPA |
| Canadian Standard (emissions) |
CSA B415.1-10 |
| USA standard (safety) |
UL 1482, UL 737 |
| Canadian standard (safety) |
ULC S628 |
| Tested and listed as per applicable standards |
By an accredited laboratory (CAN/USA) |
| Warranty |
Limited lifetime |
