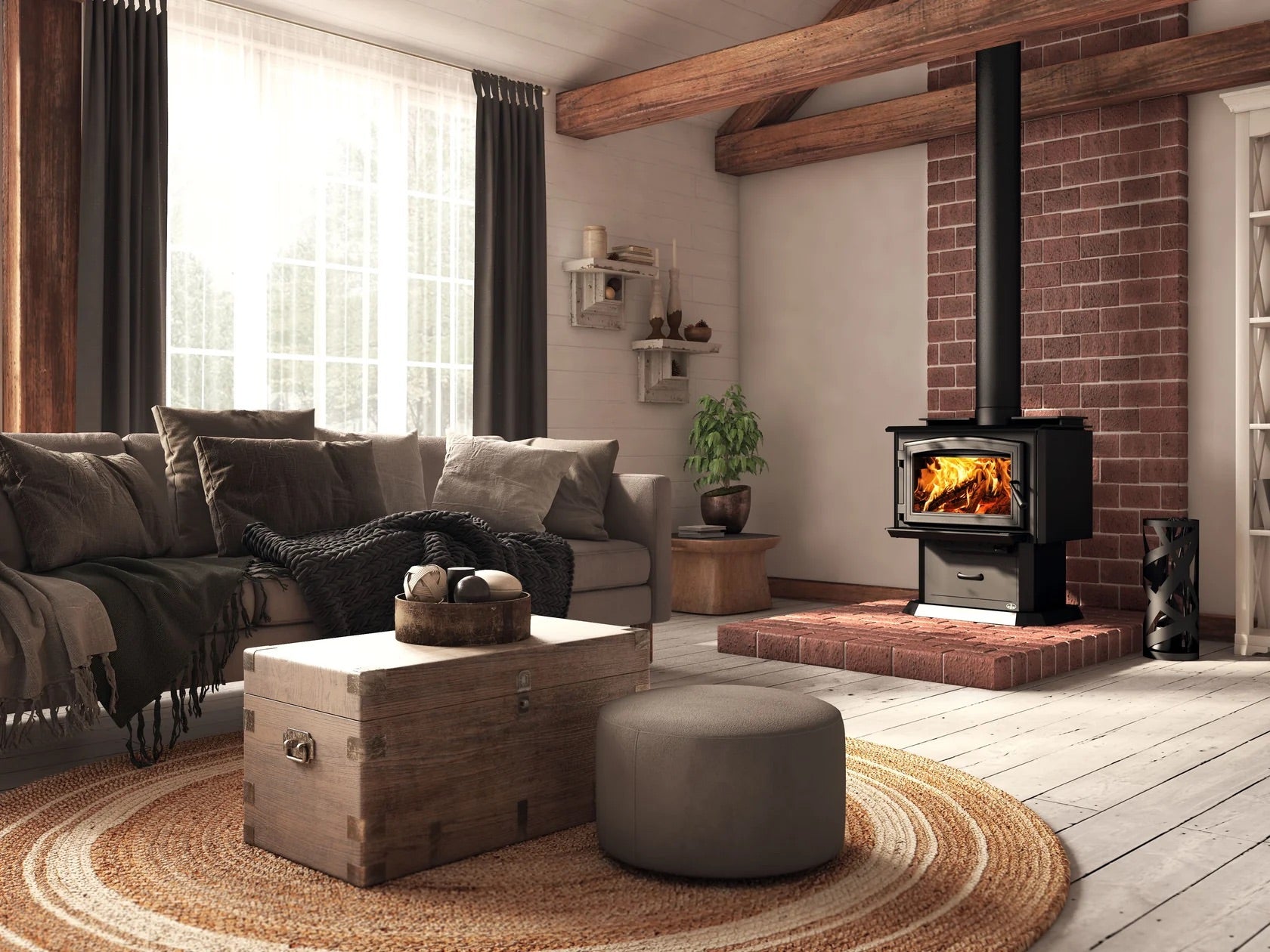

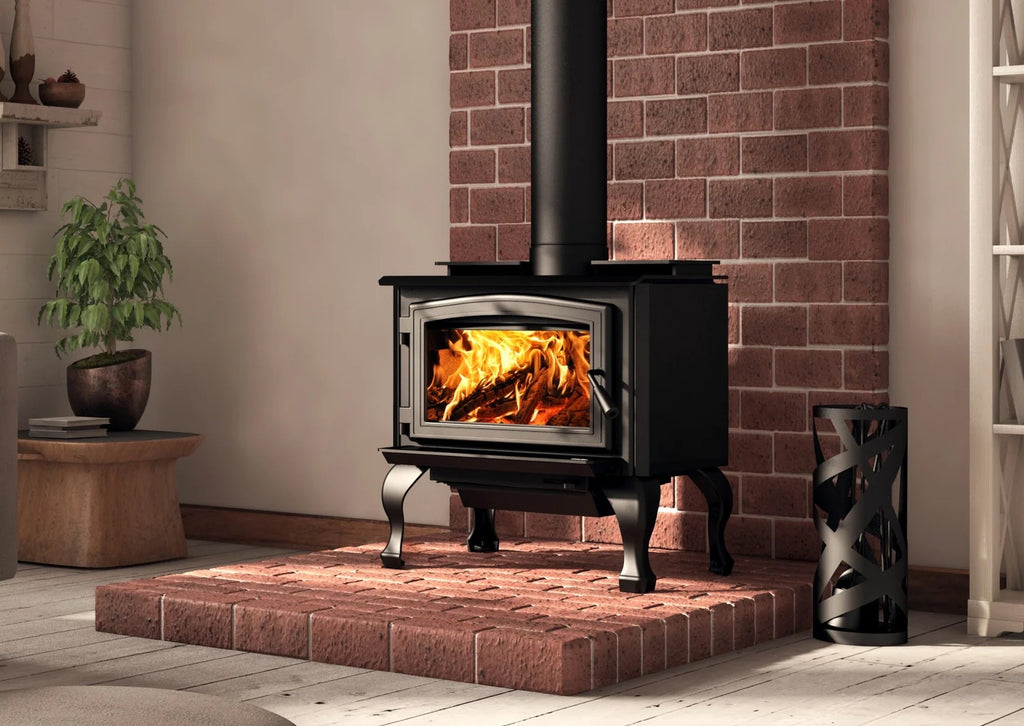

Designed to meet the needs of smaller spaces, the Osburn 1700 is a faithful copy of the recently redefined 2000 model. This firebox combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.

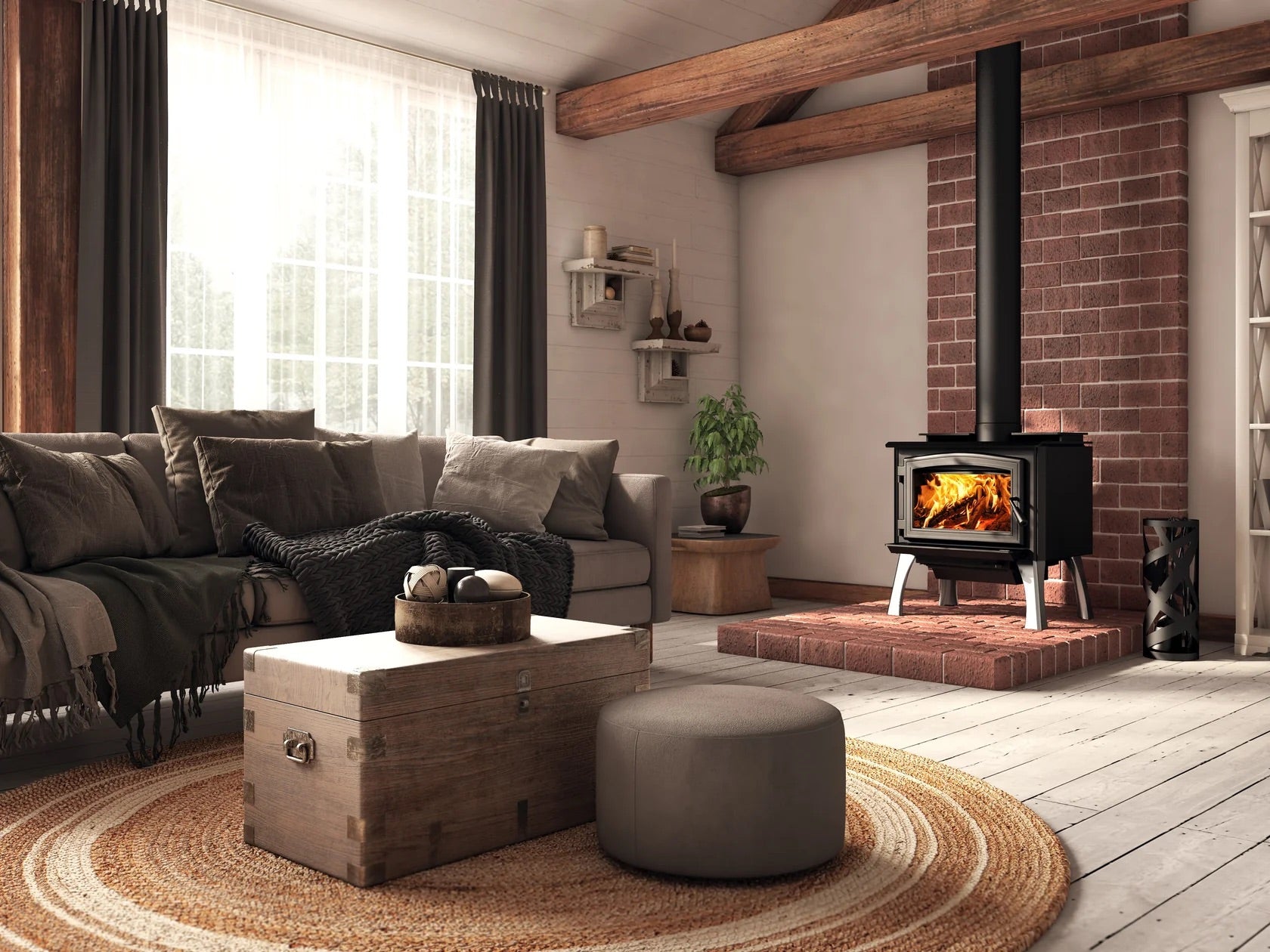

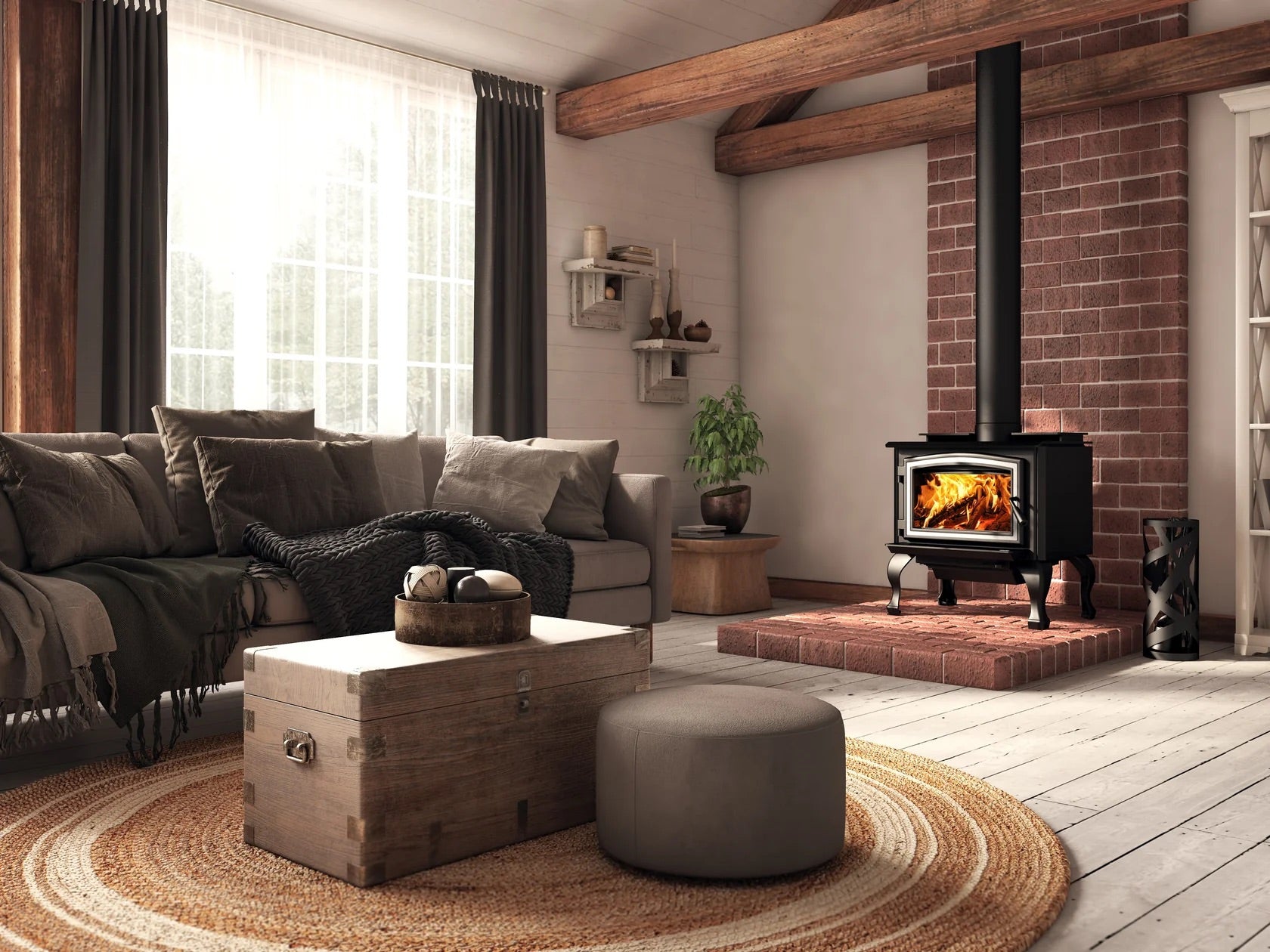

Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; significant innovations for the most seasoned experts. Respecting the most stringent legislation on particle emissions with only 1.26 g/h, this wood stove is perfect for those looking to go further.
APPLIANCE PERFORMANCE
| Fuel type : |
Dry cordwood (16" recommended) |
| Recommended heating area-ft² : ()
|
500 - 1,800 |
| Overall firebox volume-ft³ : |
1.9 |
| EPA loading volume-ft³ : |
1.44 |
| Maximum burn time : ()
|
6 h |
| Maximum heat output-dry cordwood : (2)
|
65,000 BTU/h (19 kW) |
| Overall heat output rate < : (2) (3)
|
15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW) |
| Average overall efficiency (dry cordwood) : (3)
|
70 % (HHV) (4)
|
75 % (LHV) (5)
|
| Optimum overall efficiency : (6) (7)
|
78 % |
| Optimum heat transfer efficiency : (8)
|
74 % |
| Average particulate emissions rate : (9)
|
1.26 g/h |
| Average CO : (10)
|
58 g/h |
